Data Center G50

Infrastructure

Standard cabinet units 49 600 x 1000-1200 mm;
Air supply – from the bottom in front (60-80% perforation) into the cold corridor;
2 independent power rays in each cabinet;
Payment for consumed electricity – according to the individual meter. You pay only for that amount of electricity which you actually use;
Ability to accommodate non-standard cabinets by an individual project;
Minimum rent amount - 5 units;
Raised floor with an antistatic coating, increasing in the load zones and with an additional shielding, reinforced by metal sheet in the bottom;
System of screening and removing of static capacity in the air stream under the raised floor;
Place to work with the equipment, if there is a necessity for its enduring adjustment or disassembling.

Total capacity of 2 MVA;
Independent input power of 2 x 1 MVA;
Two independent transformers and two distributive groups TS;
Two separate 10 kV lines that are connected to two independent transformers 27 / 10kV;
Automatic Gen Set;
Fuel capacity for 24 hours;

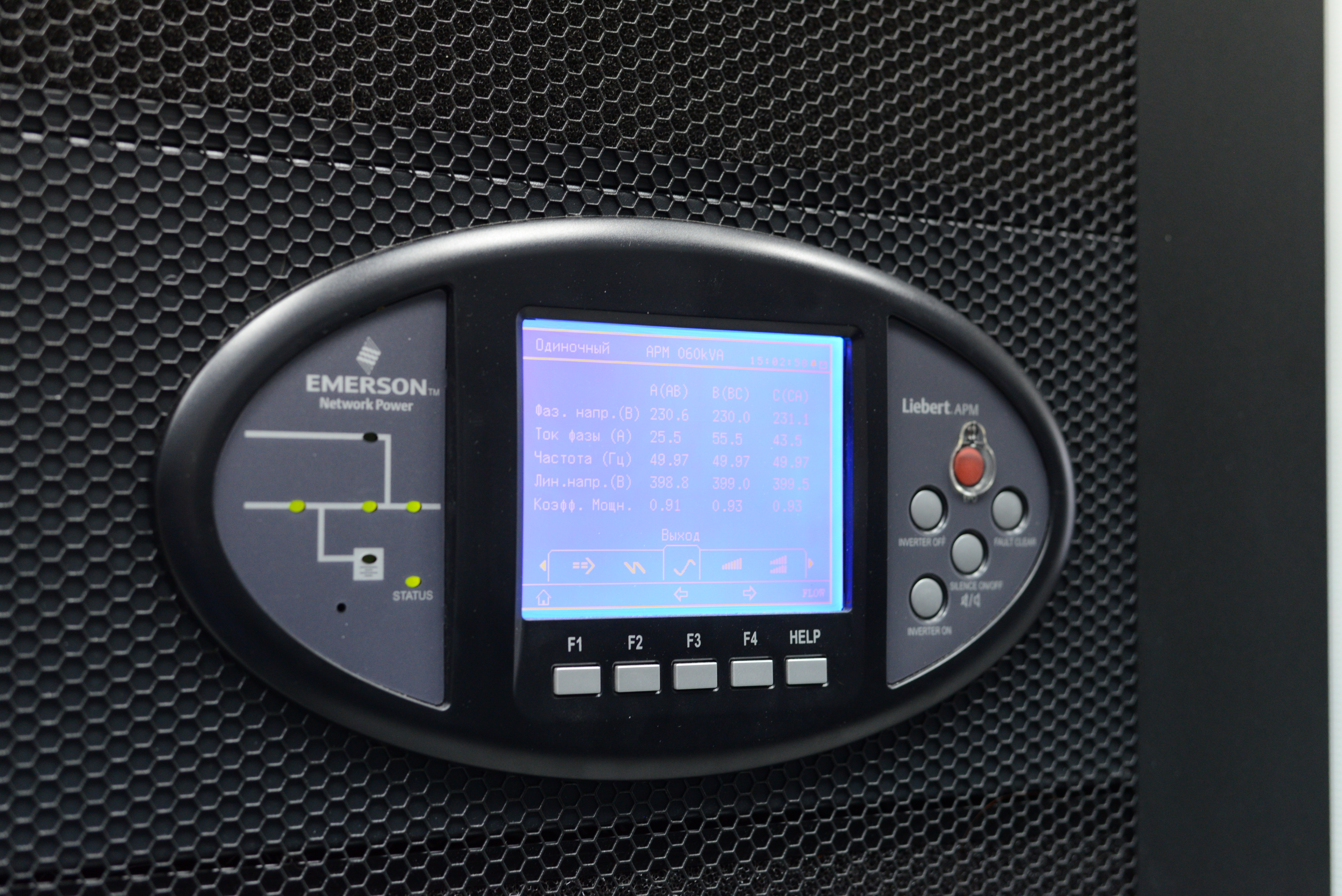

UPS by Emersion production of APM type, modular system redundancy 2N + 1;
Minimum 12-minute work from UPS battery at a full load;
Automatic bypass of UPS;
Intelligent system of remote monitoring and equipment control Liebert IntelliSlot;
Automatic Transfer Switch (ATS);
ATS with electromechanical blocking and switching on static actuators – absence of sticking contacts and scorching contactors probability and protection from humans’ errors;
Power distributors of low voltage with independent protection of each ray and hand-held bypass, with the ability to switch two supply lines;
Independent from grounding TS system of working and protective grounding - 2 spaced drillholes with the depths of 68 and 76 meters combined by cooper bus-bar;
Spatial separation of power cables and low-voltage networks;
Engineering arranging of the perimeter substation additional security.

Precision-build Emerson Liebert HPM dry conditioners with electronically adjustable performance and redundancy N + 1;
Intelligent remote centralized monitoring and equipment controlling system Liebert Intellislot;
Absence of circulating water under pressure in the server room;
Minimal risk of flooding.

System of gas volumetric firefighting;
Equally distributed placement of balloons in the room and under the raised floor;
Absence of gas lines, distributors and other elements that reduce the reliability of gas operation and its supply to the quenching;
Highly sensitive system of VESDA for the early smoke detection;
Fire-resistance of shielding constructions - at least 2 hours;
SC is made from the combustible cable;
Fireproof doors for all entrances.

Physical security provided by leading security companies;
Centralized security management system;
Possibility of remote monitoring of leased cabinets (for equipment);
Full review of all areas and approaches to them, cabinets, hot and cold corridors of the territory adjoined to the building territory by digital video surveillance CCTV (2 independent systems);
Keeping records from all cameras for 10 days;
Withdrawal images on security personnel’s monitors and to general management center G50;
Monitoring of protected space motion sensors;
Metal certified fireproof doors of intensive type;
Blocking of all doors with electric locks with a pullout force of more than 300 kg.
Registration system and access control with using of contactless readers.
Three turn access control to premises of server data centers;
Entrance into server-sides through gateways with the line of access control and video-monitoring;
Lighting perimeter of the building and protected area;
Engineering structures of physical area protection.
